Layer points are to be understood as the FO points of the corresponding network layer.
Building Drop > Closure in front of Building
Other layer point > Junction Closure
Building Point > FO terminator in the Building
Additional device > each additional closure/terminator in a Layer Point
|

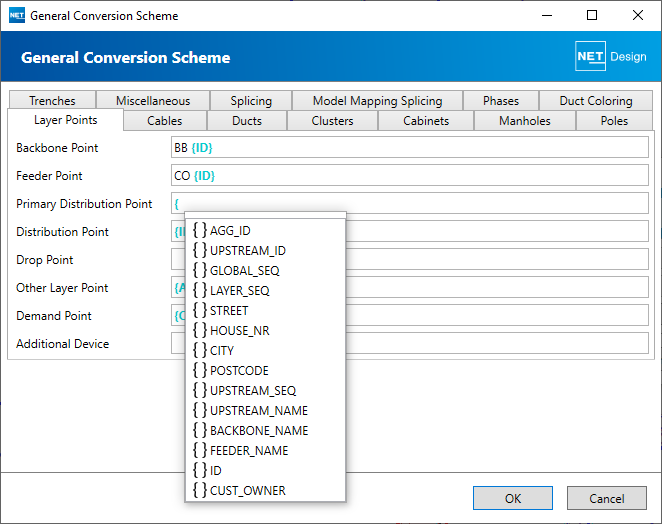

Placeholders |
Explanation |
|
{AGG_ID} |
This is the Aggregation ID of the corresponding point. |
|
{UPSTREAM_ID} |
This is a combination of the aggregation IDs of all the higher layer points. The first number is the aggregation ID of the main layer point. The last aggregation ID is that of the layer point immediately above. The IDs are separated by periods. |
|
{GLOBAL_SEQ} |
This is a global counter that is set across all network layers. |
|
{LAYER_SEQ} |
This is a counter that is set for all layer points of the respective network layer. |
|
{STREET} |
This placeholder is replaced by the address of the layer point (input). |
|
{HOUSE_NR}
|
This placeholder is replaced by the house number of the layer point (input). |
|
{CITY}
|
This placeholder is replaced by the city of the layer point (input). |
|
{POSTCODE} |
This placeholder is replaced by the ZIP code of the layer point. |
|
{UPSTREAM_SEQ} |
Sequential number for all layer points of the same parent layer point. |
|
{ID}
|
This is a combination of the aggregation ID of the higher layer point followed by the aggregation ID of this layer point. All IDs are displayed separated by periods. |
