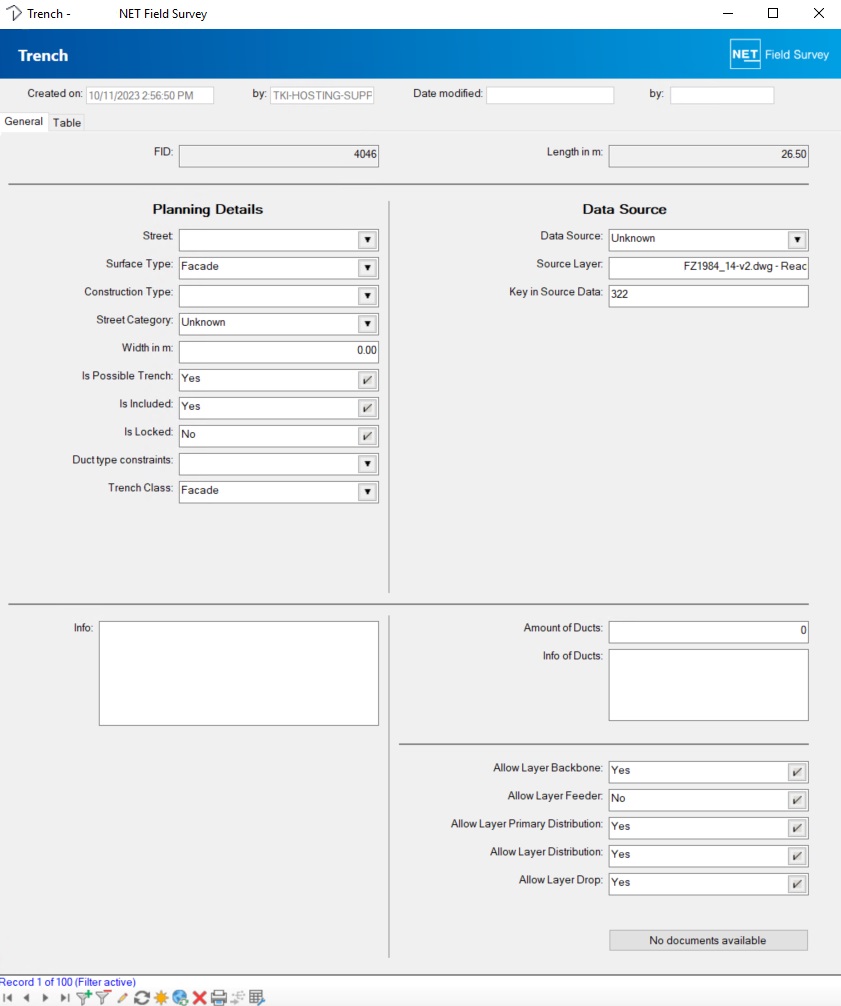

Trench

The trench in a NET Field Survey project is either

  • by an export from a NET Design project and thus automatically filled with the corresponding attributes of the source objects or
  • by a manual entry via the workflows or
  • by the standard import functions of AutoCAD Map3D

Special features of data exchange with NET Design

Export NET Design -> NET Field Survey

When exporting from NET Design, the segments in the NET Field Survey project are created from the "Result: segment used".

The attributes of the segment in NET Field Survey are filled from the object classes "Result: segment used" and "Possible trench".
