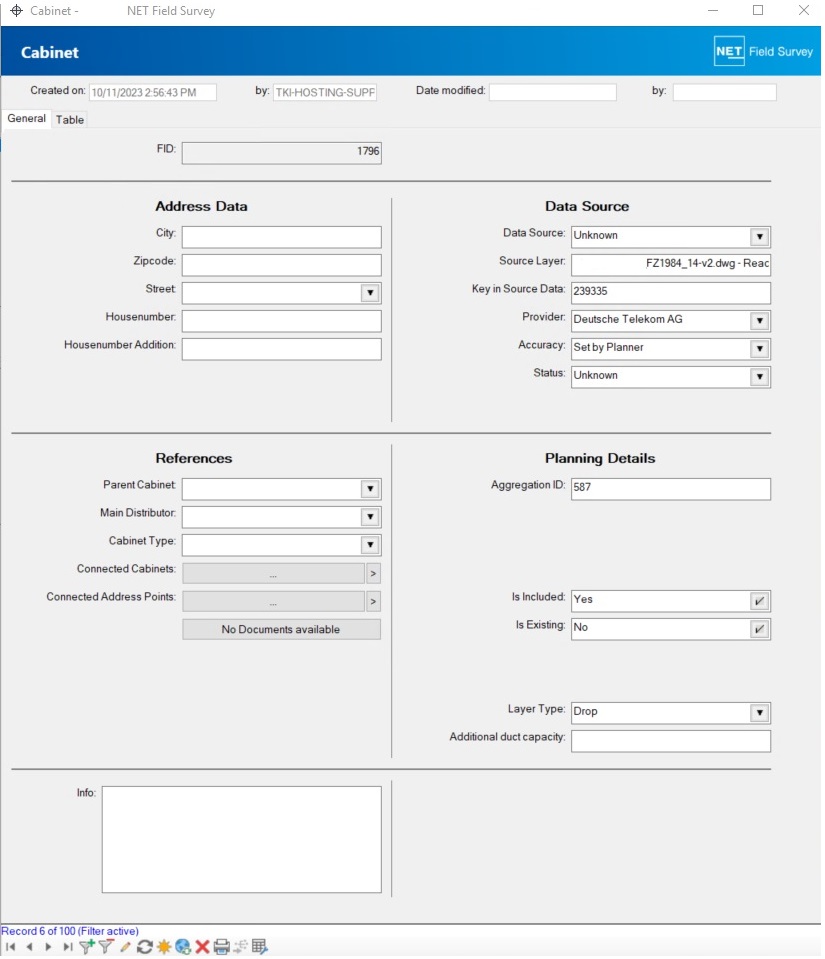

Cabinet

Cabinets in a NET Field Survey project are either created

  1. via an export from a NET Design project and thus automatically filled with the corresponding attributes of the source objects or
  2. via a manual entry using the workflows or
  3. via the standard import functions of AutoCAD Map3D.

Special features of data exchange with NET Design

Export NET Design -> NET Field Survey

The cabinet in NET Field Survey corresponds to the result: network node in NET Design. Attributes will be filled accordingly.
