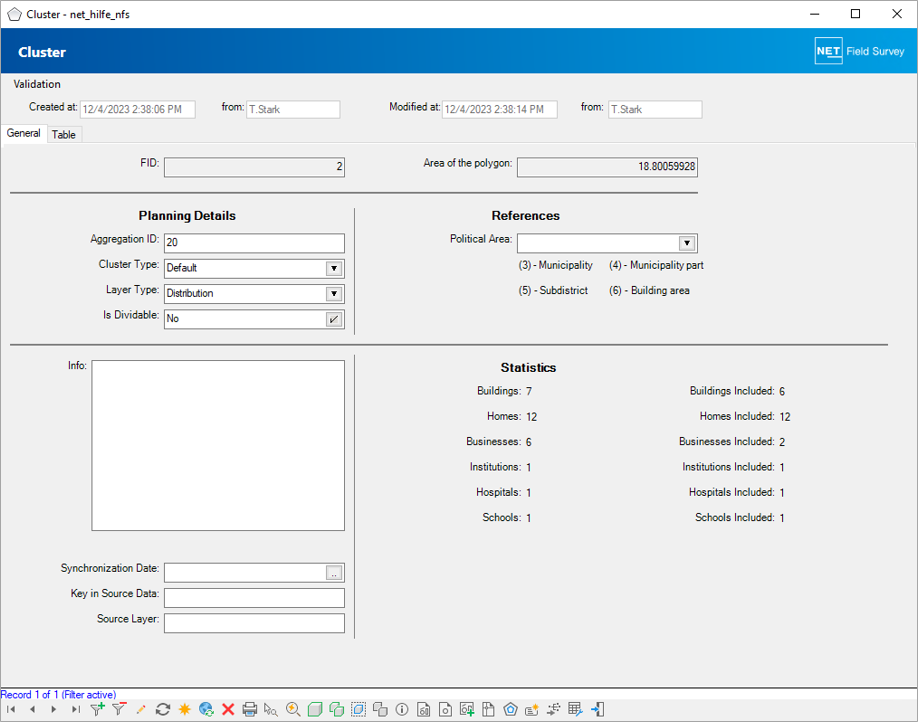

Cluster

Clusters of a NET Field Survey project can be created

  1. by an export from a NET Design project, the attributes are filled according to the attributes of the source objects
  2. by manual entry using the NET Field Survey workflows, or
  3. by using the standard import functions of AutoCAD Map3D.


Special features of data exchange with NET Design

Export NET Design -> NET Field Survey

When exporting from NET Design, the "Result: Clusters" become the clusters in the NET Field Survey project. The attributes are filled accordingly.

Note

Both the export from NET Design -> NET Field Survey and the import NET Design <- NET Field Survey require a cluster in NET Field Survey with the type "Plan Area".
