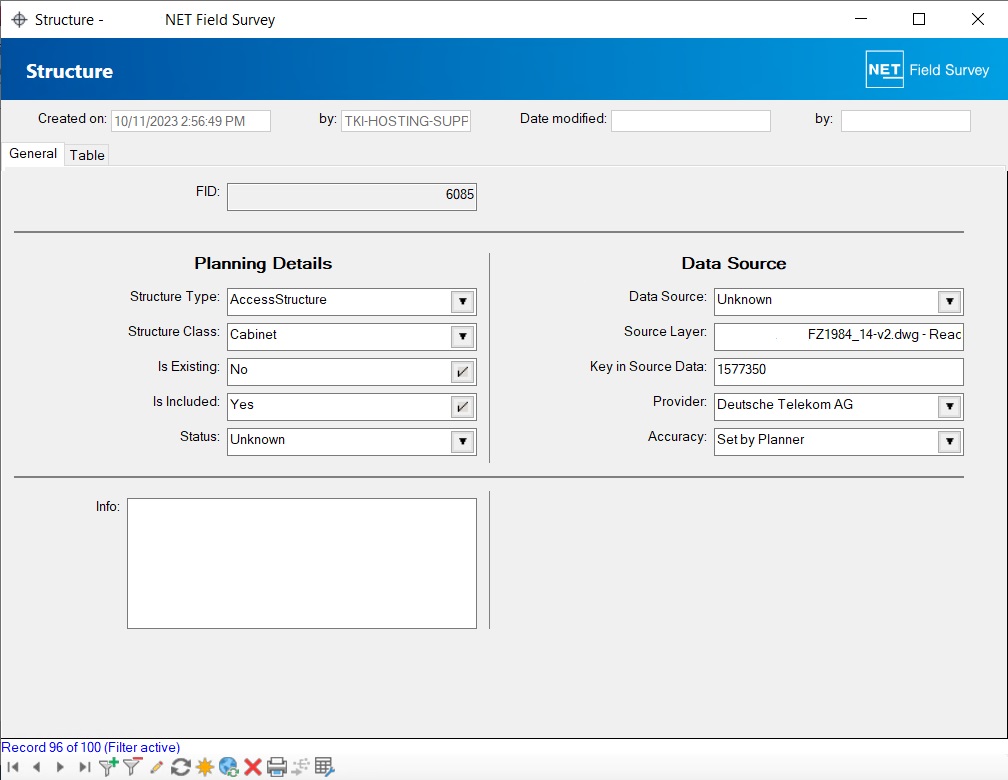

Structure

Structures in a NET Field Survey project can be created

  1. by an export from a NET Design project, the attributes are filled according to the attributes of the source objects
  2. by manual entry using the workflows in NET Field Survey or
  3. by using the standard import functions of AutoCAD Map3D.

Special features of data exchange with NET Design

Export NET Design > NET Field Survey

When exporting from NET Design, the structures in the NET Field Survey project are created from the "Result: Structures".

The attributes of the structure in NET Field Survey are filled from the object class "Result: Structure".

Result: Structures at a network node are not exported.
