Pole

Tabs

Users can find all the information about the pole in the “General” home tab. They have the option of selecting a type, category and positional accuracy for a more detailed description of the pole.

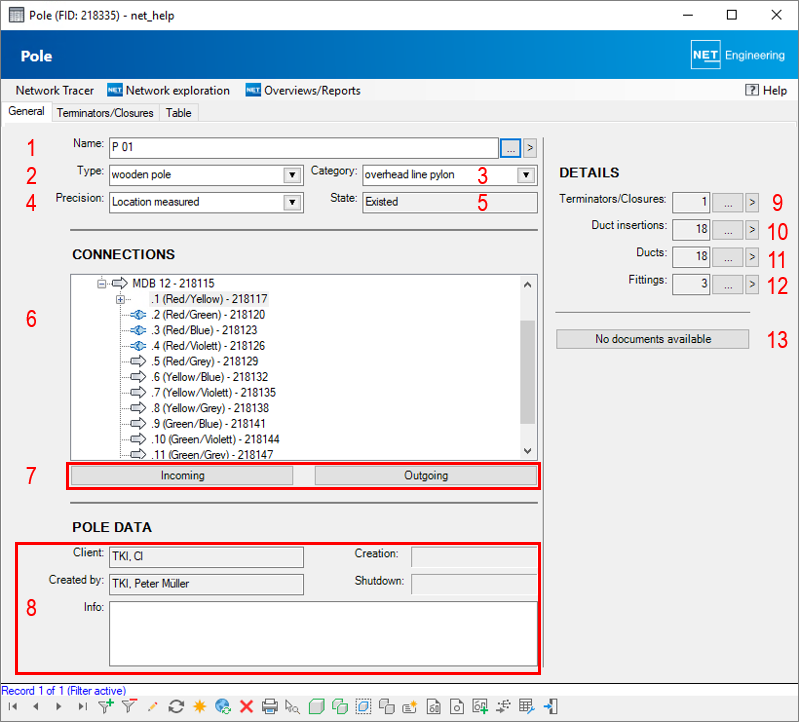

Attribute	Description
Name	The name of the point is displayed. Clicking on the button opens the point form for the current pole or, with , for all objects in the filter. (1)
Type	This is where a type can be assigned to the pole. Clicking on the button opens the selection of all defined pole types. Double-clicking in the list box opens the form for the pole type. (2)
Category	A category can be assigned to the pole here. Clicking on the button opens the selection of all defined pole categories. Double-clicking in the list box opens the form for the pole category. (3)
Precision	The precision can be assigned to the pole. Clicking on the button opens the selection of all defined precision. Double-clicking in the list box opens the form for positional accuracy. (4)
State	The state assigned to the pole in the point form is displayed. (5)
Connections	The segments that begin or end at the pole are displayed. A tree view shows which ducts or cables are assigned to the segments and whether the ducts have been fitted with duct insertions or connected with fittings. If a duct ends at the pole (see also Add duct insertion), this is indicated by the symbol in front of the corresponding duct: . If no duct insertion has been created, the duct name is displayed without a symbol. If a duct is connected with a fitting, this is indicated by this symbol: . (6) Note: The duct end overview only provides correct results if the ducts that end in a pole are also connected to the pole via a duct insertion. The forms of the respective segments open when you click on the or button. (7)
Pole data	The pole data managed for the pole in the point form is displayed. Information about the pole can be stored. (8)
Details	The number of terminators/closures is displayed. Clicking on the button opens the corresponding point forms for the terminators/closures or with all terminators/closures of the objects in the filter. (9) The number of duct insertions is displayed. Clicking on the button opens the corresponding forms for the duct insertions or with all duct insertions of the objects in the filter. (10) The number of ducts is displayed. Click on the button to open the corresponding forms for the ducts or with all ducts for the objects in the filter. (11) The number of fittings is displayed. Clicking on the button opens the corresponding forms for the fittings or with all fittings of the objects in the filter. (12)
Documents	This displays whether documents have been attached to the form. (13)

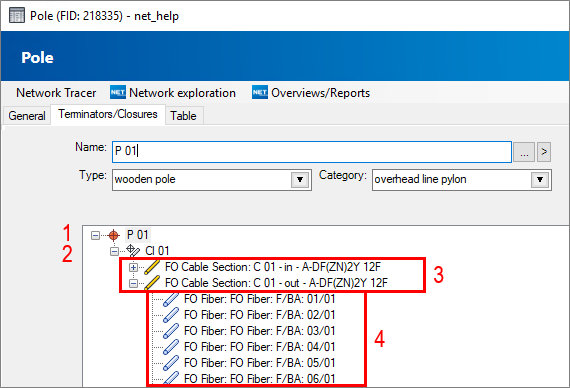

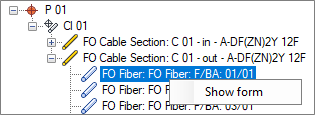

The terminators/closures assigned to the pole and the associated cable sections are displayed in a tree view in the “Terminators/Closures” tab.


1. The name of the pole is displayed.
2. The name of the closure/terminator is displayed.
3. The cable sections that start/end in the closure are displayed.
4. The fibers of the corresponding cable sections are displayed.
