Manhole

Tabs

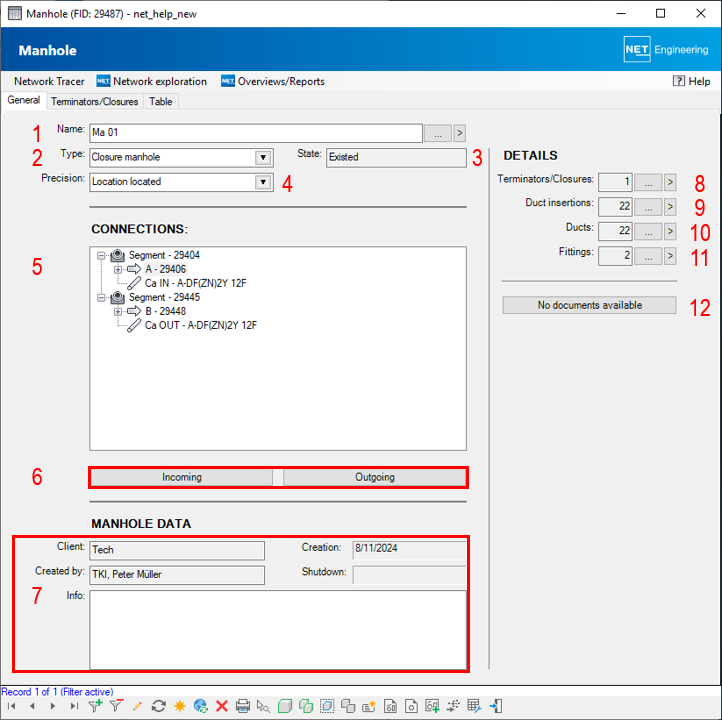

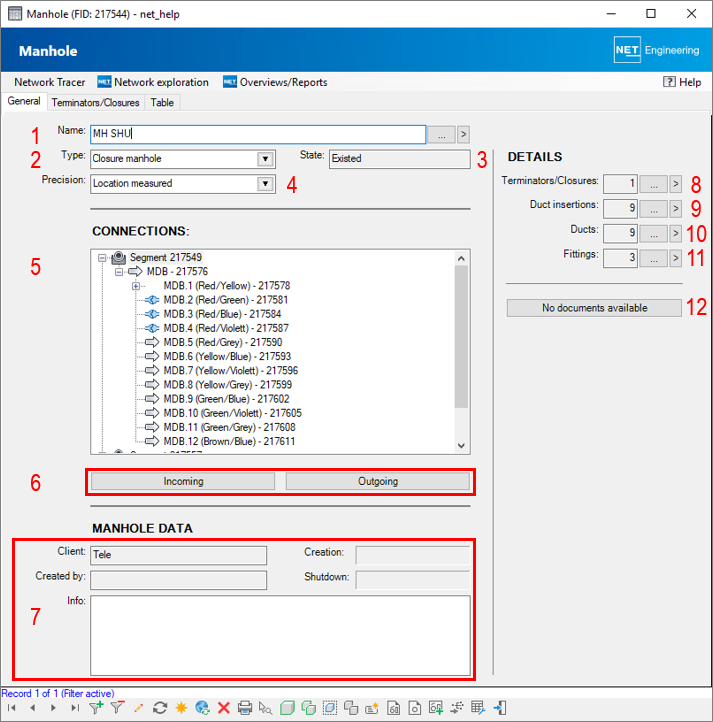

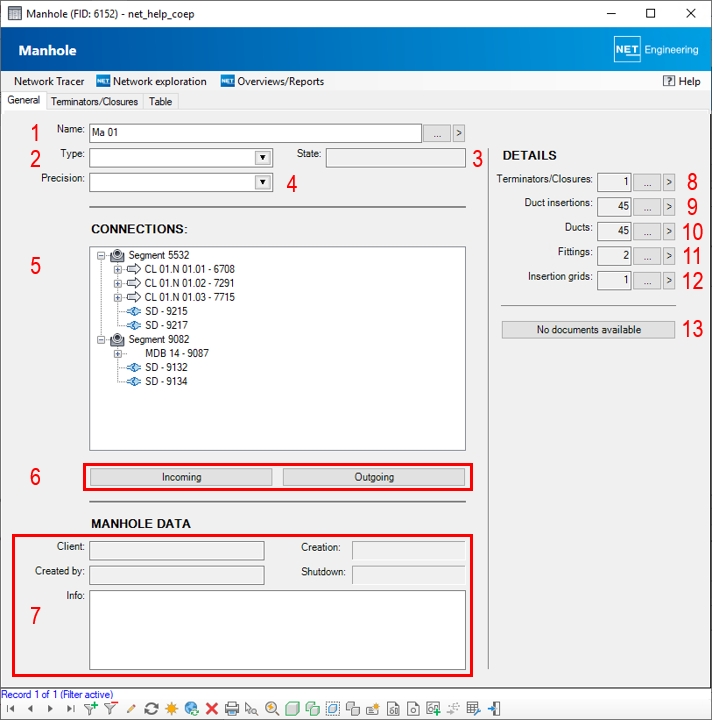

Users can find all the information about the manhole in the “General” home tab. They have the option of selecting a type and the positional accuracy for a more detailed description of the manhole.


Attribute Description
Name The name of the point is displayed. Clicking on the mceclip1.png button opens the point form for the current manhole or, with mceclip2.png, for all objects in the filter. (1)
Type This is where a type can be assigned to the manhole. Clicking on the mceclip3.png button opens the selection of all defined manhole types. Double-clicking in the list box opens the form for the manhole type. (2)
Status The status assigned to the manhole in the point form is displayed. (3)
Positional accuracy The positional accuracy can be assigned to the manhole. Clicking on the mceclip3.png button opens the selection of all defined positional accuracies. Double-clicking in the list box opens the form for positional accuracy. (4)
Connections The trenches that start or end at the manhole are displayed. A tree view shows which ducts or cables are assigned to the trenches and whether the ducts have been fitted with duct insertions. If a duct is inserted into the manhole (see also Add duct insertion), this can be seen by the symbol in front of the corresponding duct: mceclip0.png. If no duct insertion has been created, the duct name is displayed without a symbol. (5)
Note: The duct-end overview provides correct results only if the ducts that end in a manhole have also been introduced into the manhole via a duct insertion.
The forms of the respective trenches open when you click on the mceclip1.png or mceclip2.png button. (6)
Manhole data The manhole data managed for the manhole in the point form is displayed.
Information on the manhole can be stored. (7)
Details The number of terminators/closures is displayed. Clicking on the mceclip1.png button opens the corresponding point forms for the terminators or closures. (8)
The number of duct insertions is displayed. Clicking on the mceclip1.png button opens the corresponding forms for the duct insertions. (9)
The number of fittings is displayed. Clicking on the mceclip1.png button opens the corresponding forms for the fittings. (10)
Documents This displays whether documents have been attached to the form. (11)

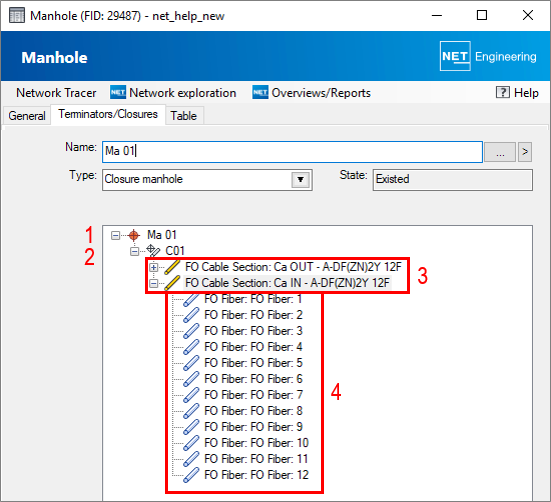

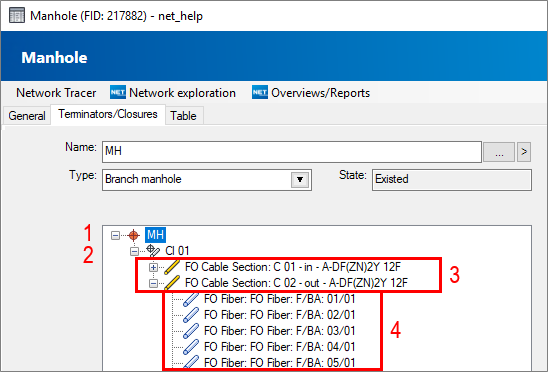

The terminators/closures assigned to the manhole and the associated cable sections are displayed in a tree view in the “Terminators/closures” tab.


1. The name of the manhole is displayed.
2. The name of the closure/terminator is displayed.
3. The cable sections that start/end in the closure are displayed.
4. The fibers of the corresponding cable sections are displayed.

Context menus

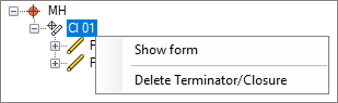

Context menu for the manhole


Context menu for the closure/terminator


Context menu for the cable section

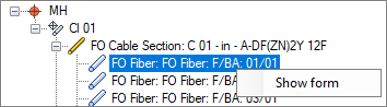

Context menu for the fiber


Menu items

A connection overview can be displayed via “network exploration”.


The duct-end overview and the forms for the labels created can be opened via the “Overviews/reports” menu.
