Designations are used in various ways for identifying fibers/wires, connectors/pins, splitters and ducts. These designations can be product specific or predefined by the operator of a system.
It is important to use consistent labeling. For this purpose, NET includes a comprehensive tool for managing name schemes. A number of basic name schemes are already available in the program, and further schemes can be easily added.
The name schemes are managed in the form with the same name. Open the form via Industry Model Explorer > Administration > Name scheme.
Each Name scheme has corresponding attribute definitions and a scheme type. These forms are arranged below the Name-scheme form and display the information about the current record in the Name scheme.
The Name schemes editor and Attribute scheme editor workflows make it easier to create name schemes.
Name scheme
The already-defined name schemes are displayed in the Name-scheme form (= number of records in the filter). Click on the button or the
menu item to create new Name schemes.
Tabs
| General tab—upper part | |
| Attribute | Description |
| Name | The name of the name scheme is freely selectable and is entered here. (1) |
| Format | This is where the format of the name scheme is defined. The characters “%1”, etc., are placeholders for attributes that are defined in the Name Scheme-Attribute form. (2) |
| Example: NAme scheme for the numbering of fibers and bundles in a cable section. These are cables with 12 fibers in a bundle.F/BW: The fibers are numbered in the bundle. “%1” is a placeholder for the fiber number and “%2” is a placeholder for the bundle number. The bundle number is only increased by the value 1 when the numbering of the fibers has gone through all the values defined in the Designation-attribute form (start to end). | |
| Type | This is where the Name Scheme Type is selected. It can be a numbering or color scheme, for example. (3) |
| Information | This is where you can put descriptive information on the name scheme. (4) |
| Testing the scheme | This button is used to start a test for the selected scheme. (5) |
| Name Scheme attribute tab—lower part | |
| The placeholders described in field 2 (Name Scheme Form) are defined in the Name Scheme Attribute form. | |
| Name | Entry of the name of the placeholder to be defined from the field 2 format (Name Scheme form). (6) |
| Attribute type | Selection of the attribute type. You can find more information under Name Scheme Attribute Type. (7) |
| Start/end | In the Start and End fields, the start and end sequences from the value range for type are defined for the placeholder defined under Name. (8) |

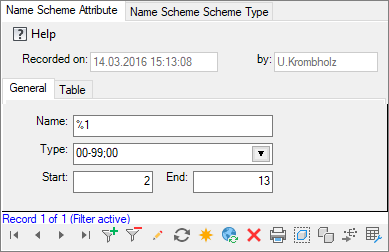

| Example: The placeholder “%1” stands for the fiber number in the bundle. The fiber numbers are positive integers. For this reason, type “00–99” is selected. The numbering of the fibers in the bundle runs from 1 to 12 (12-wire bundles). This means that only the values from beginning=1 to end=12 are used from the value range of 00–99.

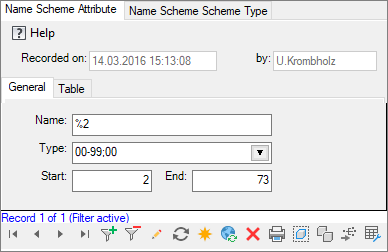

The placeholder “%2” stands for the bundles in the cable section. The numbering of the bundles runs from 1 to 72 in the integer range. The format setting “%1/%2” indicates that all values of the fiber numbering “%1” go through their value range first before the value “%2” is increased by 1. |
|
| Name Scheme Scheme Type tab—lower part | |
| The data field of the feature class for which the name scheme is used is specified in the name Scheme type form.
|
|
| Table name | The name of the feature class must be selected from the drop-down list. |
| Attribute | The name of the attribute must be entered. |
| Field color 1/2 | Color designation for the Duct feature class, which can have two colors: COLOR and COLOR2 |

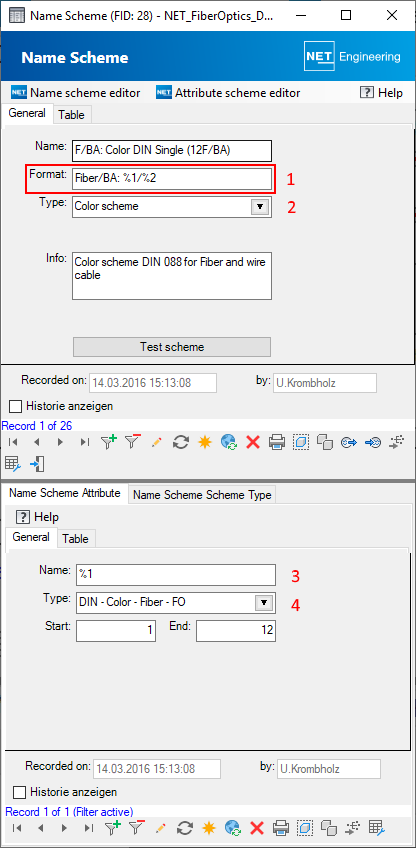

Color scheme for fibers
In order for the fiber colors from the value scheme to be translated into the corresponding colors in the graphical overviews, the scheme must be named as follows: Placeholder space%1/%2
| General tab—upper part | |
| Attribute | Description |
| Format | The implementation of the color requires a space, the placeholder %1, a “/” and optionally another placeholder value. The first color is read between the space and the “/”, so the “/” is absolutely necessary: Fiber/BA: %1/%2 If the color is not defined, black is used. (1) |
| Type | The color scheme must be selected as the type. This facilitates filtering by color and numbering schemes. (2) |
| “Name Scheme Attribute” tab—lower part | |
| Placeholders | The placeholders must be configured accordingly. (3) |
| Attribute type | The attribute type must be assigned. (4) The colors are assigned to the sequences in the Numbering-attribute-type form.
|
